Product Name

1 Inch Hole Thru-Hull Led Underwater Boat lighting for catamaran power boat lighting Blue color DC24V





Product Feature

Thru-Hull model with the world’s smallest hole cut-out for a thru hull light at only 1” and a 1-inch (25mm) profile head make it the ideal underwater light for transom mount applications.

This drain plug lights has overheat and over current.over heat, over temperature protection

Ocean LED Lamp 60W 12V Single Color Drain Plug Boat Light

1,Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.

2,The housing is adopted by the 316L Stainless Steel, the best choice for sea water.

3,High luminous efficiency, life-span more than 50000 hours

4, Wide working current range. Lower electric consumption

5,Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.

6,Power: 60W and 120W

7, Waterproof: IP68

8,Supply Voltage : DC12V or DC24V

9, LED chips : CREE

10, Emitting angle of peak : 120°

11, Color : Blue, Red, Green, White, Warm White, RGB, RGBW

• 3 years no hassel warranty, Plug and Play!

1, Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.
2, The Shell is adopted by Marine 316L stainless steel has excellent corrosion-proof
3, High luminous efficiency, life-span more than 50000 hours
4, Wide working current range. Lower electric consumption
5, Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.
6, Power: 80W
7, Waterproof: IP68
8, Supply Voltage : 10-30VDC (Single Color); DC12V or DC24V (Dual Color, RGB and RGBW Color)
9, LED chips : Epistar / C-REE
10, Emitting angle of peak : 120°
11, Built-in Driver
12, Available Color: Daul Color, White, Red, Green, Blue, RGB, RGBW



Product Specification





功率Power (W)	发光色                 Emitting color	灯珠牌子Chips Brand	输入电压   Input voltage	波  长Wavelength (nm)	流   明                         Total Lumens (LM）	光束角度Beam Angle
60W	White	CREE/ Bridgelux	12VDC /24VDC		4000-4500	120°
60W	Red		12VDC /24VDC	630nm	1800-2000	120°
60W	Green		12VDC /24VDC	520nm	2800-3000	120°
60W	Blue		12VDC /24VDC	460nm	800-1000	120°
60W	RGB		12VDC /24VDC		1600-1900	120°
60W	RGBW		12VDC /24VDC		2200-2500	120°
120W	White		12VDC /24VDC		8000-9000	120°
120W	Red		12VDC /24VDC	630nm	2500-2800	120°
120W	Green		12VDC /24VDC	520nm	6000-6500	120°
120W	Blue		12VDC /24VDC	520nm	1500-1800	120°
120W	RGB		12VDC /24VDC		3500-4000	120°
120W	RGBW		12VDC /24VDC		4000-4500	120°

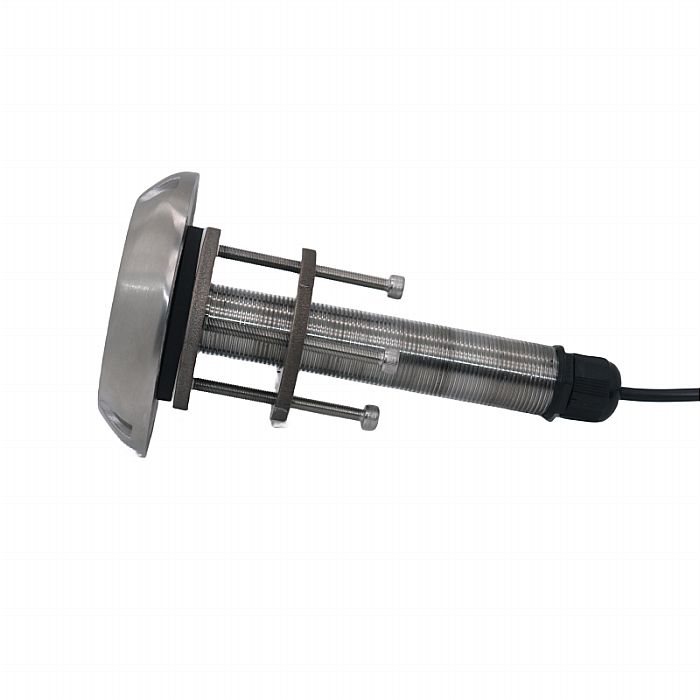

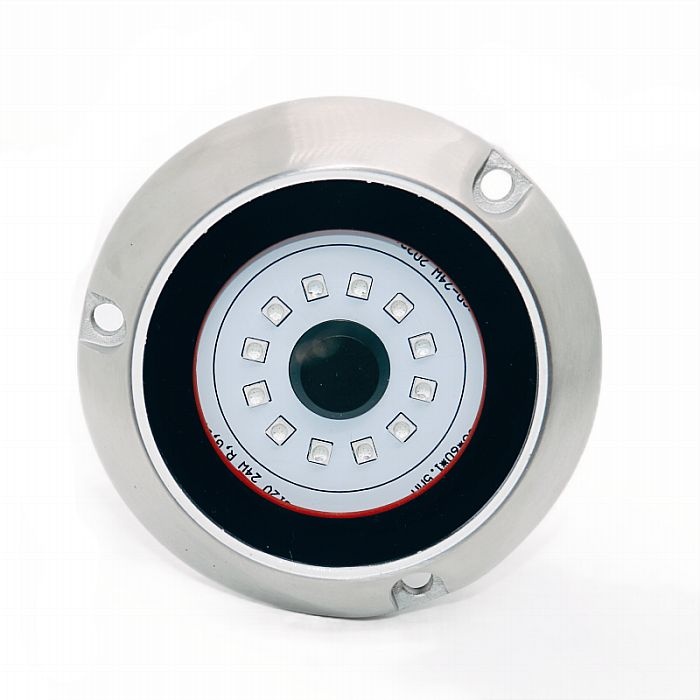

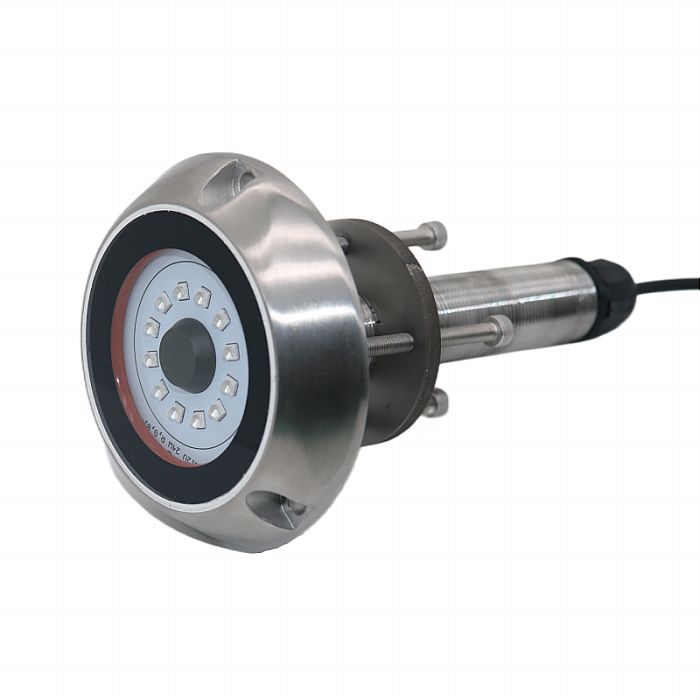

Product Photo

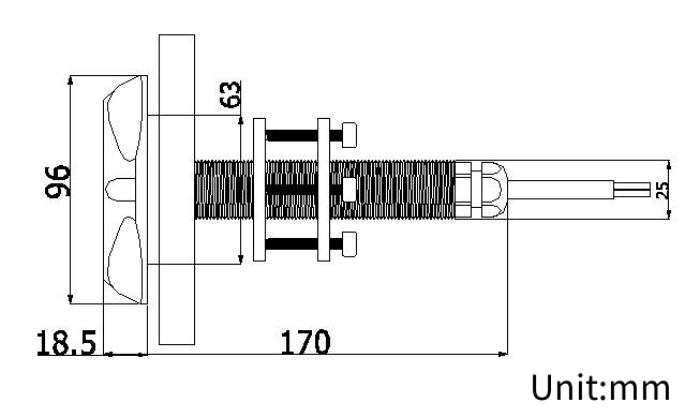

Product Size (mm)

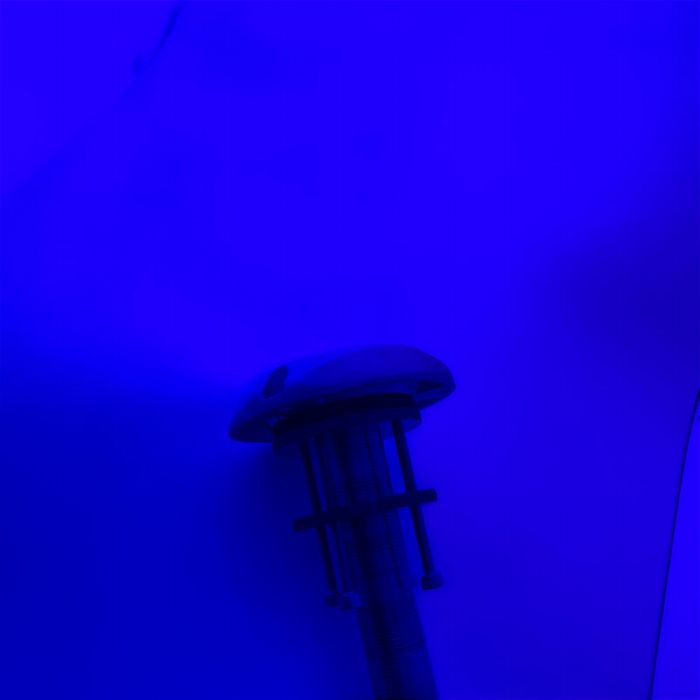

Product Application

These underwater led marine lights are designed to mounted to your boats.Use high power LED on marine to show sea creatures at night, floodlight to show off the outline of the boat,the illuminative light as new fashion illumination.

Light up the water behind your boat with these super bright high quality underwater  led lights. Amazing look, Attract marine life, wakeboard on illuminated water.

These lights also good for docks, ponds, swimming pools, fountains or any other    underwater lighting application.
